Product code: CAL02-W8

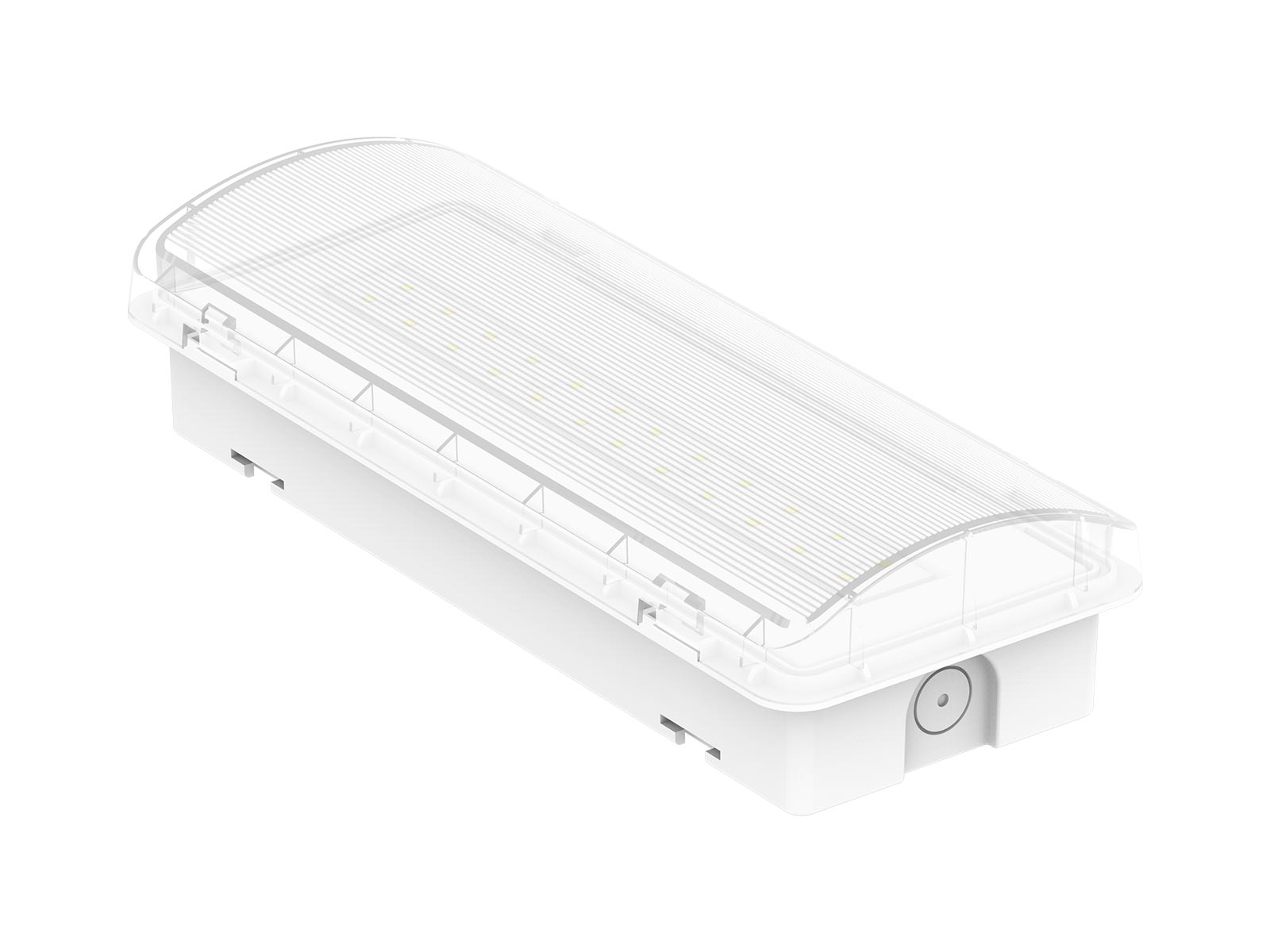

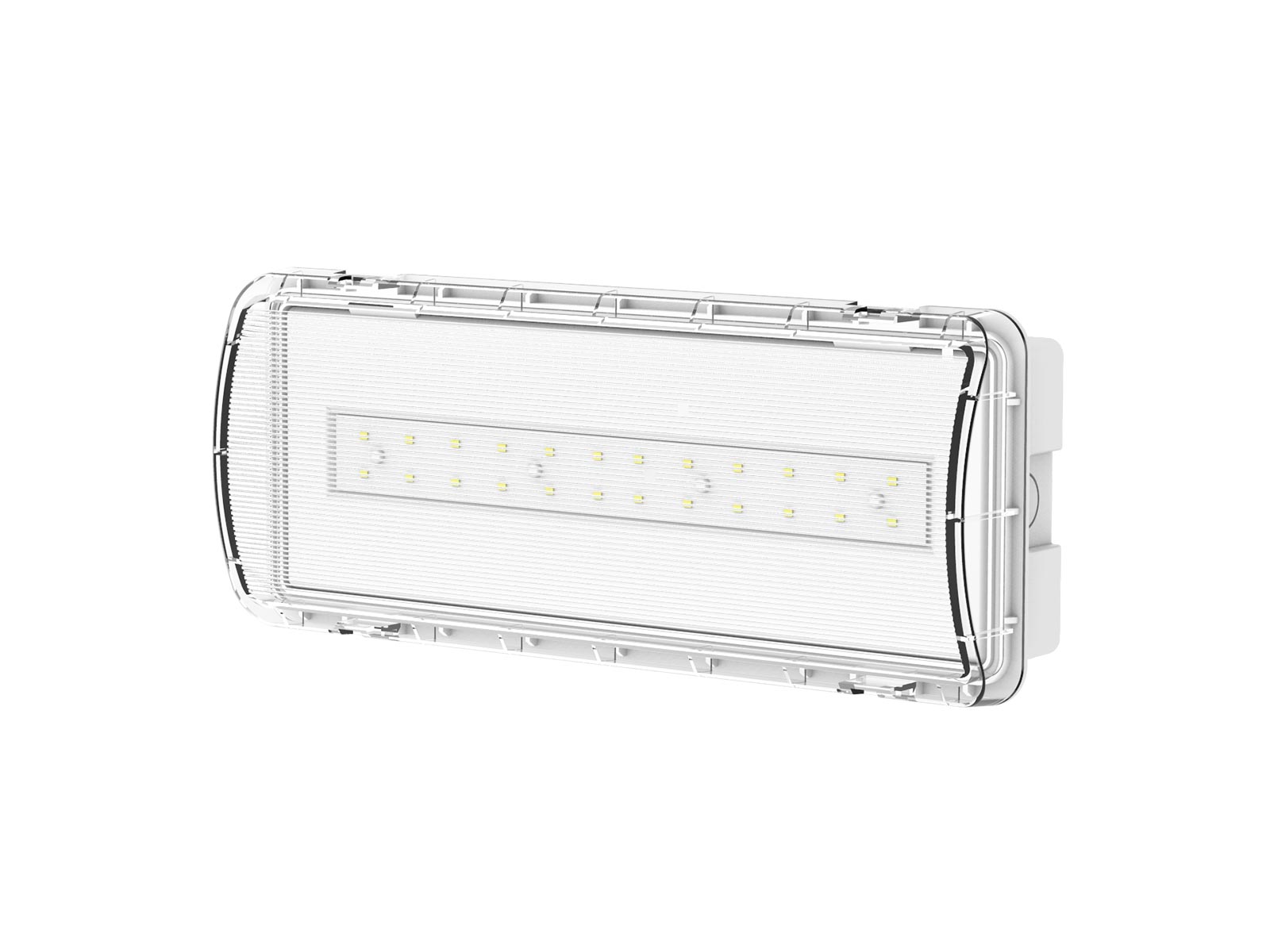

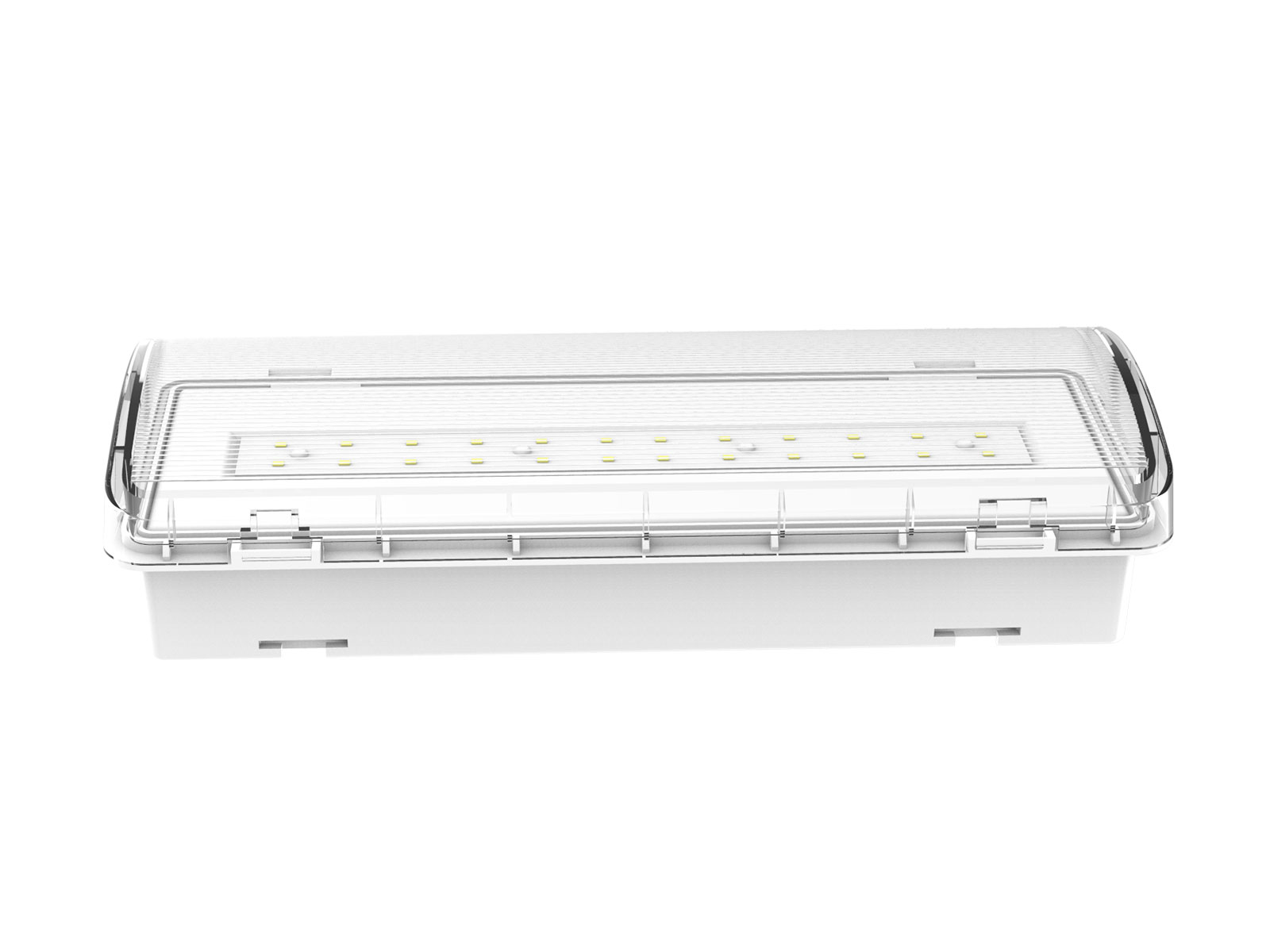

CAL02-8W LED emergency bulkhead is controlled by smart IC with a self-test function. It has two different outputs which are adjustable. Optional interchangeable legends. IP65 Rated.

Product code: CAL02-W8
CAL02-8W LED emergency bulkhead is controlled by smart IC with a self-test function. It has two different outputs which are adjustable. Optional interchangeable legends. IP65 Rated.
| Specification | Value |
|---|---|
| MOUNTING TYPE | Surface Mounted |
| POWER (W) | 8W Max |
| INPUT VOLTAGE | 220-240V |

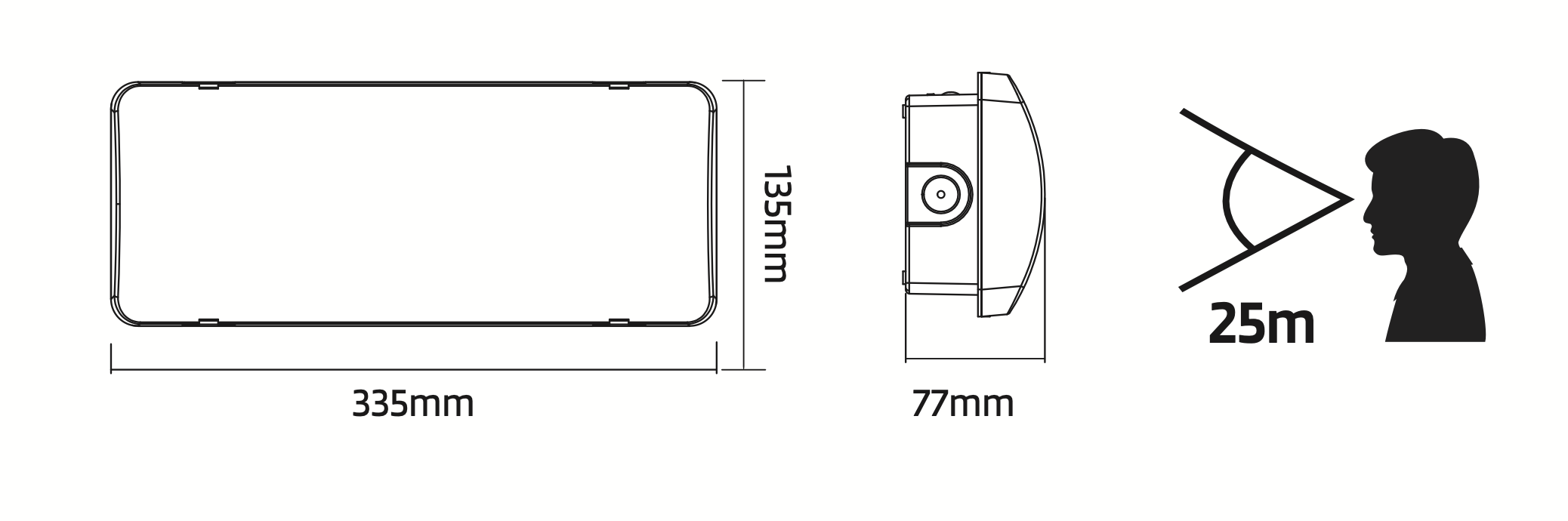

| DIMENSIONS | L335mm x H135mm x W77mm |
| COLOUR TEMPERATURE | 5000K |
| MATERIAL | Polycarbonate |
| IP RATING | IP65 |
| DALI AVAILABLE | YES |
| AVAILABLE FINISHES | White | Black |
| WARRANTY | 5 Years |
| EMERGENCY POWER | 8W Max |
| LUMEN OUTPUT | 1200lm |
| CHARGE DURATION | 24H |
| EMERGENCY OUTPUT PERIOD | 3H |
| BATTERY | LiFePO4 6.4V 6000mAh |
| TEST MODE | Auto | Manual | DALI Addressable |
Download Product Data Sheet
