Product code: CAL02-W8

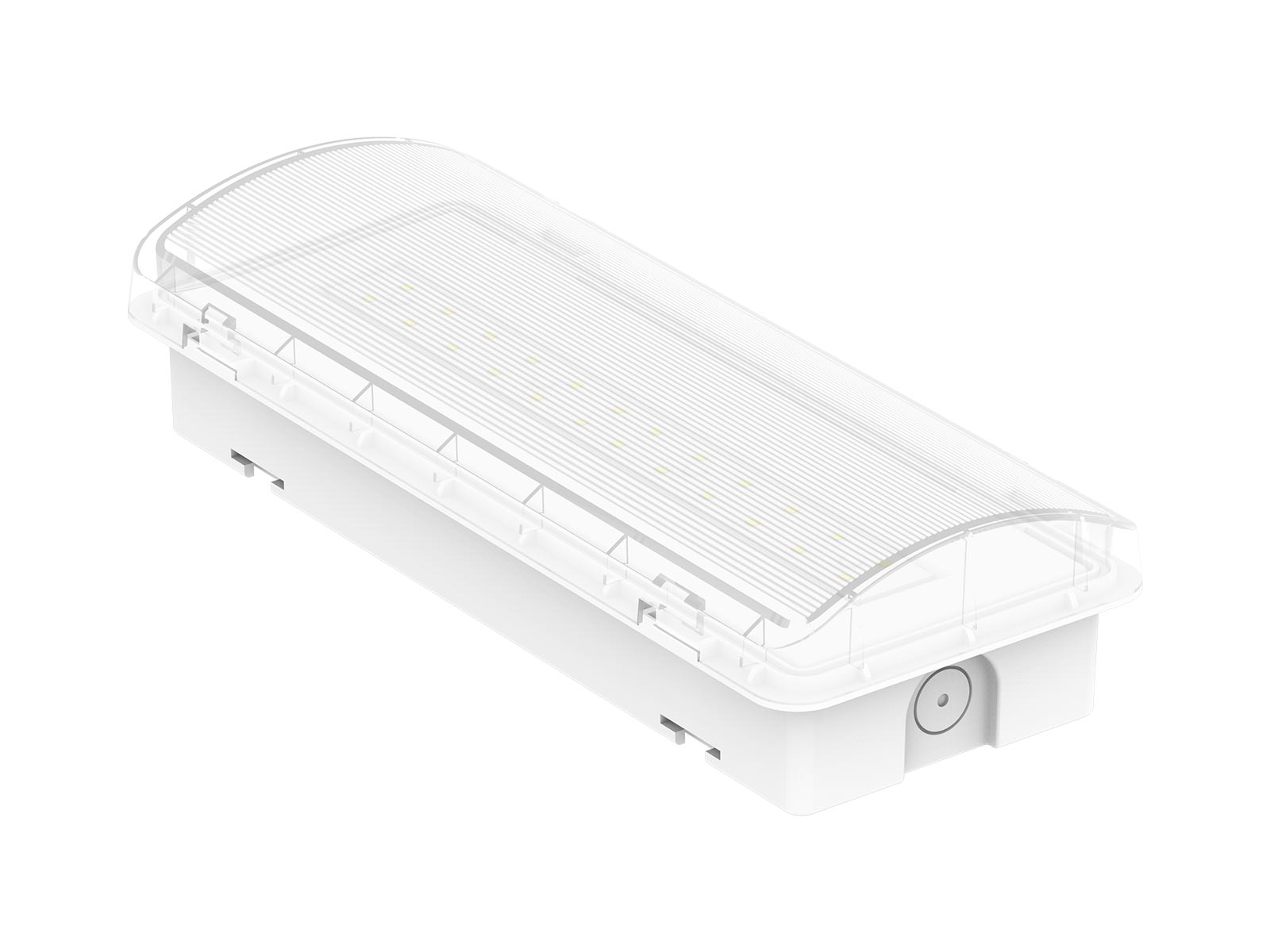

CAL02-8W LED emergency bulkhead is controlled by smart IC with a self-test function. It has two different outputs which are adjustable. Optional interchangeable legends. IP65 Rated.
Product code: CAL02-W8
CAL02-8W LED emergency bulkhead is controlled by smart IC with a self-test function. It has two different outputs which are adjustable. Optional interchangeable legends. IP65 Rated.
Specification | Value |
---|---|
MOUNTING TYPE | Surface Mounted |
POWER (W) | 8W Max |
INPUT VOLTAGE | 220-240V |

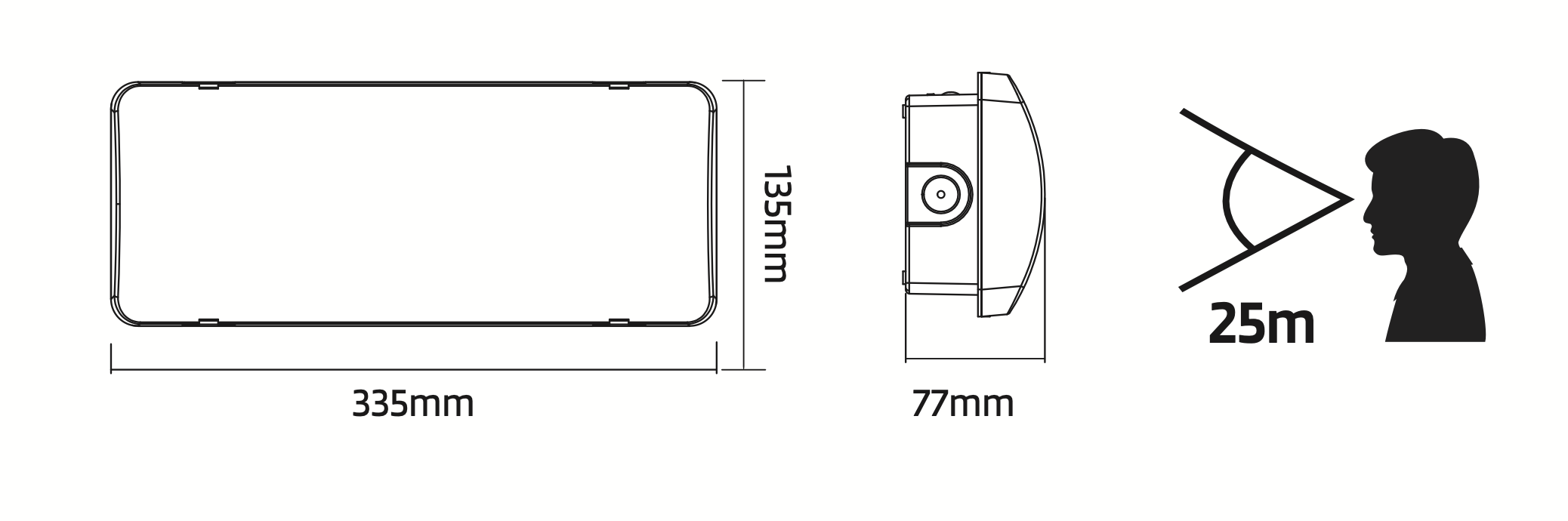

DIMENSIONS | L335mm x H135mm x W77mm |
COLOUR TEMPERATURE | 5000K |
MATERIAL | Polycarbonate |
IP RATING | IP65 |
DALI AVAILABLE | YES |
AVAILABLE FINISHES | White | Black |
WARRANTY | 5 Years |
EMERGENCY POWER | 8W Max |
LUMEN OUTPUT | 1200lm |
CHARGE DURATION | 24H |
EMERGENCY OUTPUT PERIOD | 3H |
BATTERY | LiFePO4 6.4V 6000mAh |
TEST MODE | Auto | Manual | DALI |
Download Product Data Sheet
