Product code: THY02-3W

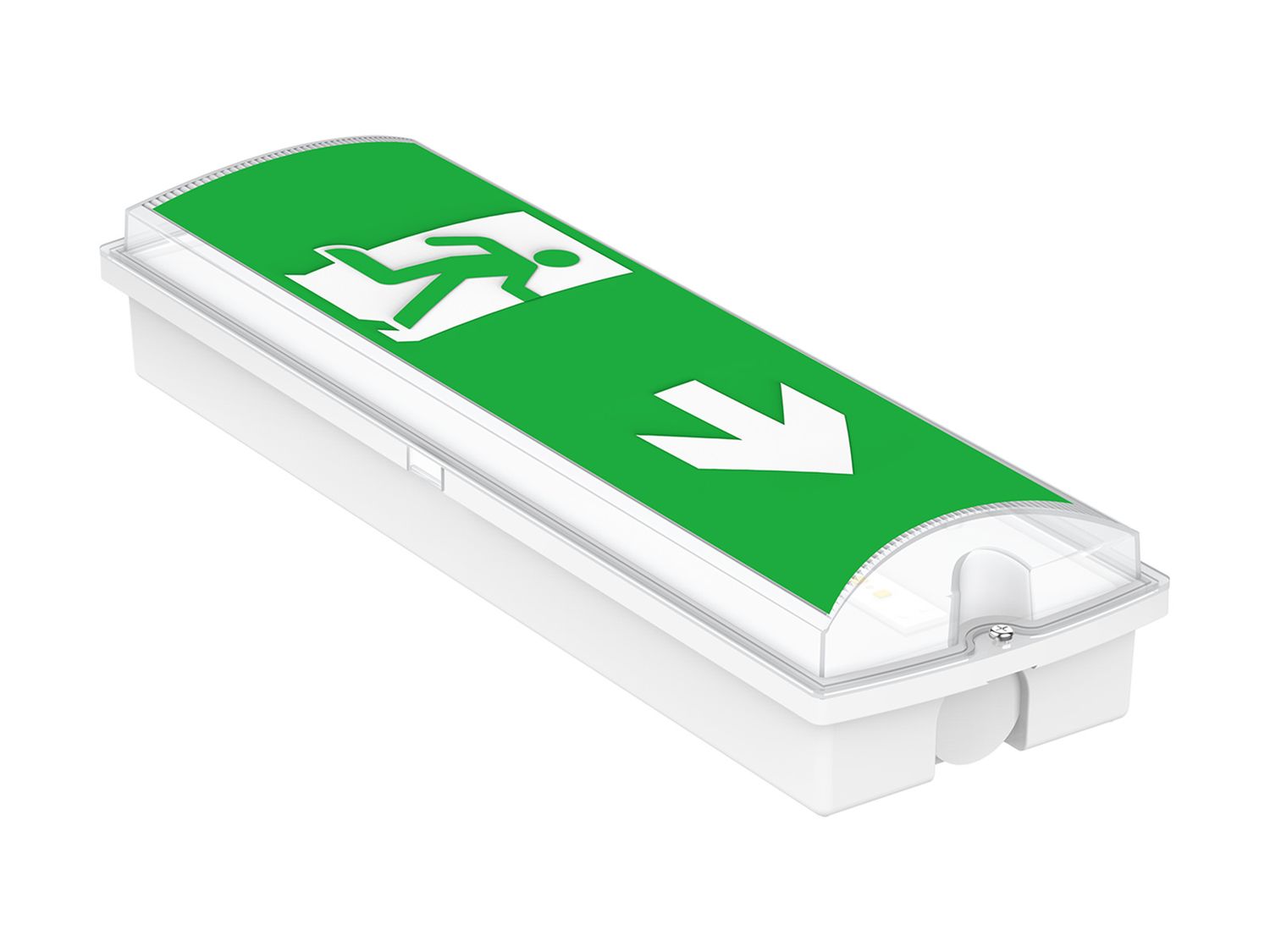

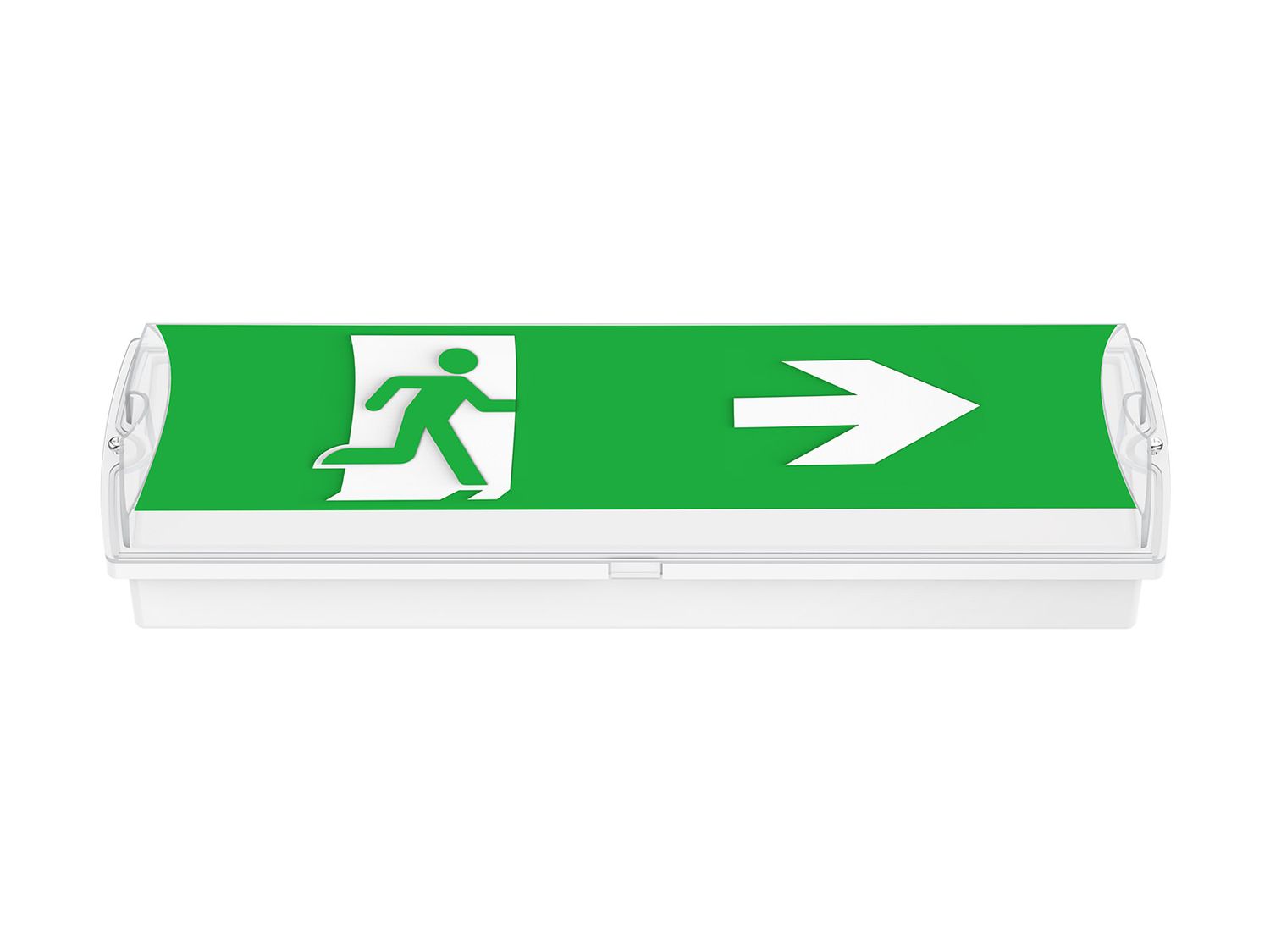

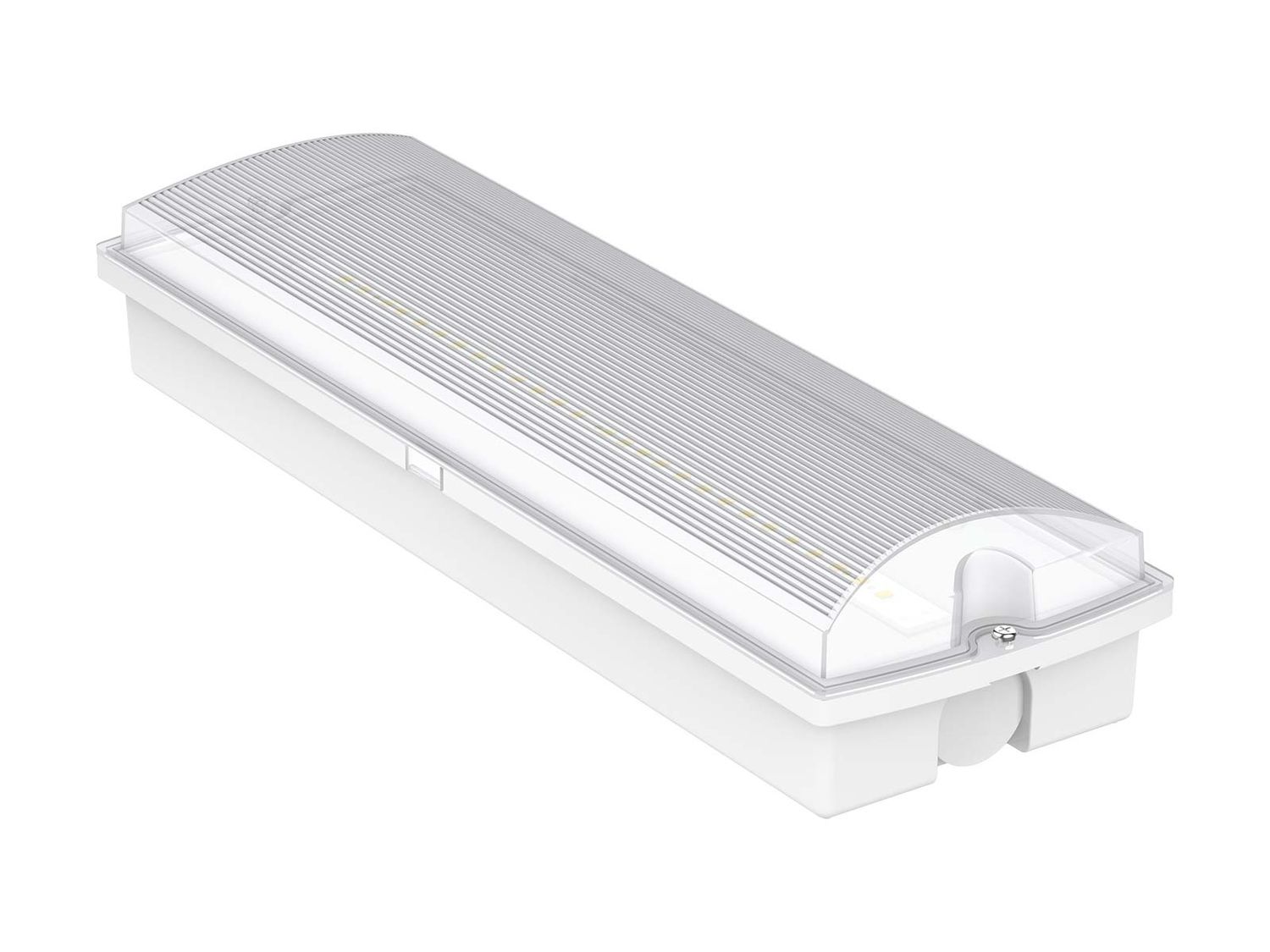

The THYONE emergency bulkhead is controlled by smart IC, with self-test function. It has two different outputs which are adjustable. Left, right, up, down directional arrow pictogram legends are optional.
Product code: THY02-3W
The THYONE emergency bulkhead is controlled by smart IC, with self-test function. It has two different outputs which are adjustable. Left, right, up, down directional arrow pictogram legends are optional.
| Specification | Value |
|---|---|
| MOUNTING TYPE | Surface | Recessed |
| POWER (W) | 3W Max |
| INPUT VOLTAGE | 220-240V |
| DIMENSIONS | L340mm x H105mm x W62mm |
| COLOUR TEMPERATURE | 5000K |
| MATERIAL | Polycarbonate |
| IP RATING | IP65 |
| DALI AVAILABLE | YES - Power 2W Max |
| AVAILABLE FINISHES | White | Black |
| WARRANTY | 5 Years |
| LUMEN OUTPUT | 200lm |
| CHARGE DURATION | 24H |
| EMERGENCY OUTPUT PERIOD | 3H |
| BATTERY | LiFePO4 6.4V1500mAh |
| TEST MODE | Manual Test | DALI Addressable |
